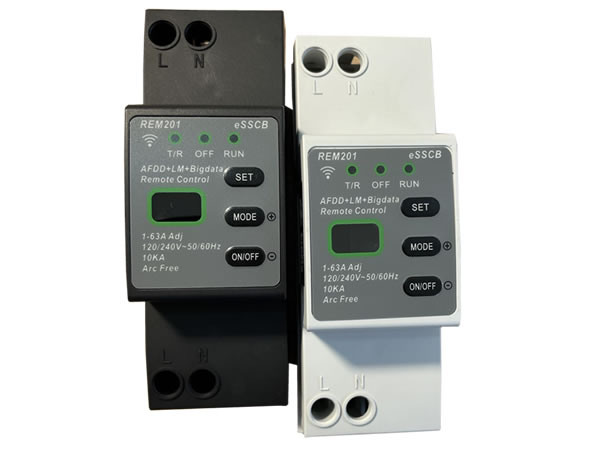

| 2025SiC Solid-State Circuit Breaker |
 Feature： |

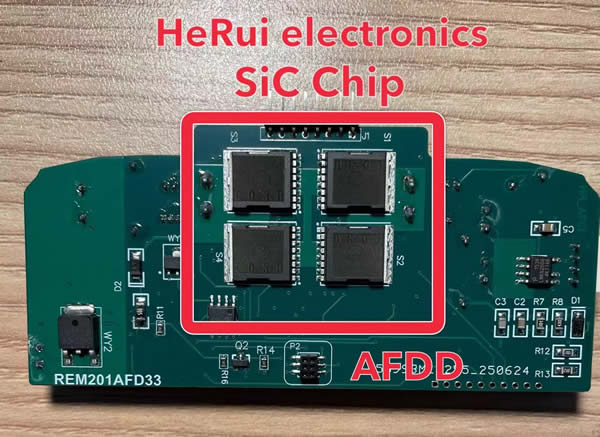

1. Revolutionary innovative products in world, Utilizing SIC solid-state technology to achieve safe control of electrical branches, with fast speed and arc-free switching (High performance and Low cost)
2. Features include arc protection (AFDD/AFCI), Leakage, Overcurrent, short circuit, Overvoltage, Undervoltage, and Overtemperature protection.
3. All electrical parameters are adjustable, with a rated current range of 1-45A, and adjustable thresholds for leakage, overvoltage, and undervoltage.
4. It supports WiFi connectivity and MQTT protocol, enabling the upload of relevant electrical data such as current, voltage, power, power factor, and fault information.
5. Dimensions: 36X102 mm (width X height).
6. Breaking current: 10KA
7. Load identification function (LM)
8. In addition to WIFI communication, it also supports CANBUS and RS485 communication.
9. The AFDD/AFCI meets the performance requirements of relevant standards, including IEC 60606, UL 1699,
10. Technical Support: 0816-2883765, or afcimaster@126.com
data：
REM201 users manal02cn001 |
|
